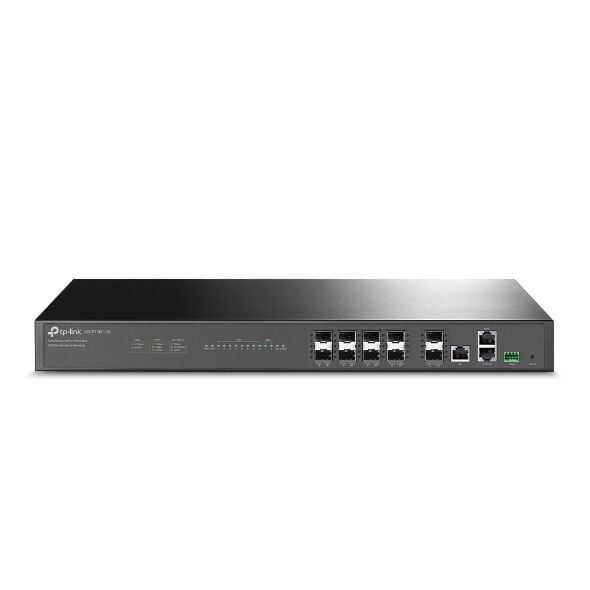

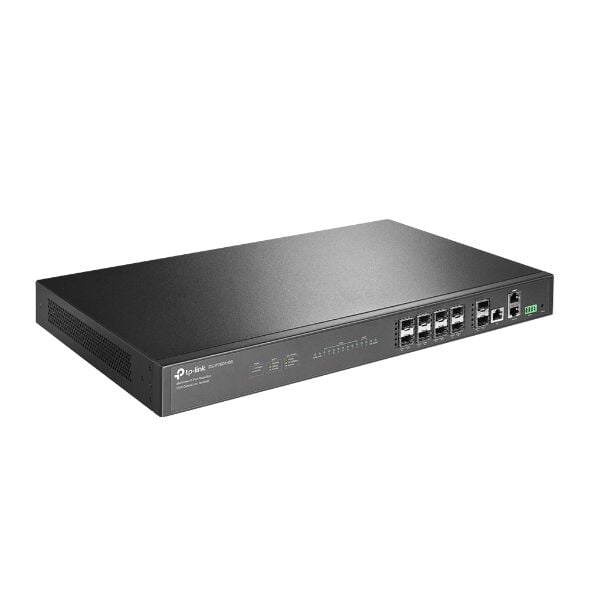

DS-P7001-08 DeltaStream 8-port Pizza-box GPON Optical Line Terminal

Kategori

OLT

Stok Kodu

210243063-DS-P7001-08

Fiyat

1.248,70 USD + KDV

57.594,49 ₺

Gelince Haber Ver

8 GPON Portu,
1024 ONU'yu Destekler

Her port için 1:128 bölme oranını destekler; tek bir cihazla 1024'e kadar ONT.

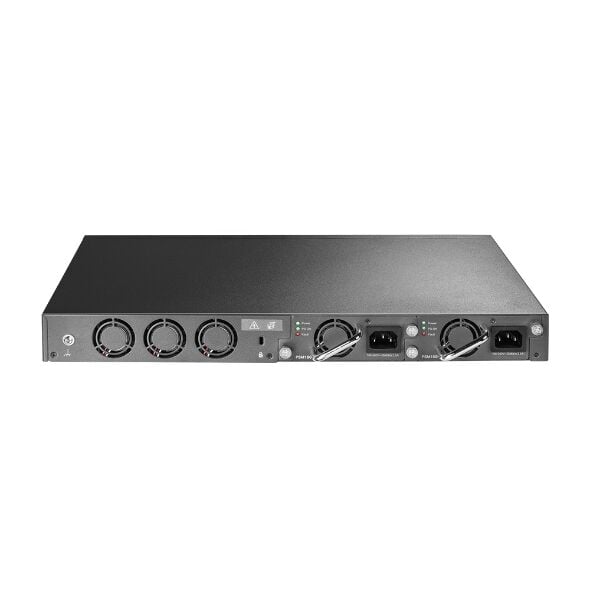

Çift yedekli güç kaynakları taşıyıcı sınıfı güvenilirliğini garanti eder. AC, DC ve karma güç girişi desteklenir.

DONANIM ÖZELLİKLERİ
Arabirim	• 8× 2.5G PON Ports • 2× 10 Gbps SFP+ Uplink Ports • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved)
Buton	Reset Button
Güç Kaynağı	• Dual Power Supplies: 2 AC, 2 DC or AC+DC, • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V
Güç Tüketimi	Max. 70W
Boyutlar ( W X D X H )	17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm)

YAZILIM ÖZELLİKLERİ
Güvenlik	• ACL • 802.1x Authentication • ARP Inspection • IP Source Guard
DHCP	• DHCP Server • DHCP Relay
OMCI	Standard OMCI Management Supported
ONU Authentication	ONU Auto Authentication
ONU Security	• Rouge ONU Detection and Isolation • Uplink and Downlink Data Encryption
Multi-Service	Multi-Service Traffic Identify and Rate Limit
QoS	• IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP
Routing	Static Routing
Mulitcast	• IGMP Snooping • MLD Snooping
Centralized Management	• Large-Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi-Site Management • Intelligent Network Monitoring • Real-time Network Overview

GPON port attribute
Max. Splitting Ratio	1:128
Transmission distance	20 km
Data rate	• Downstream: 2.5 Gbps • Upstream: 1.25 Gbps
Wave Length	• Tx: 1490 nm • Rx: 1310 nm
Interface type	SC/UPC
Fiber type	9/125μm SMF (Single Mode Fiber)
Tx power	Class C+

DİĞERLERİ
Sertifika	CE,FCC
Paket İçeriği	• OLT Device • Power Cord and Console Cable • Installation Guide • Mouting Brackets, Screws and Rubber Feet
Ortam	• Operating Temperature: 0°C~50°C (32°F~122°F) • Storage Temperature: -40℃~70℃(-40°F ~158°F)
