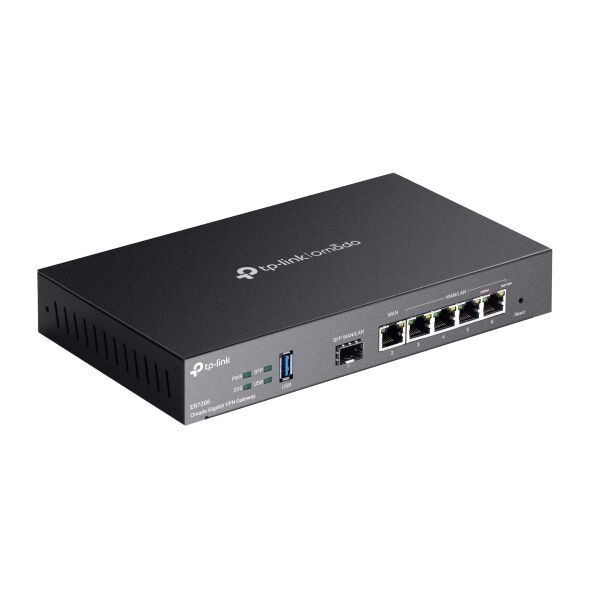

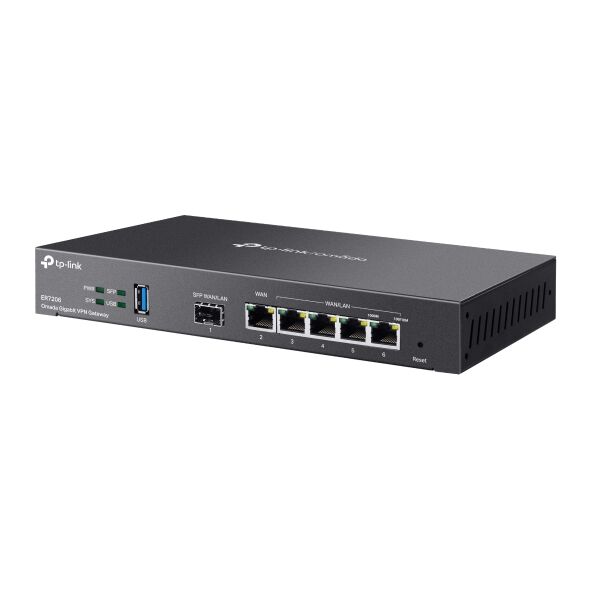

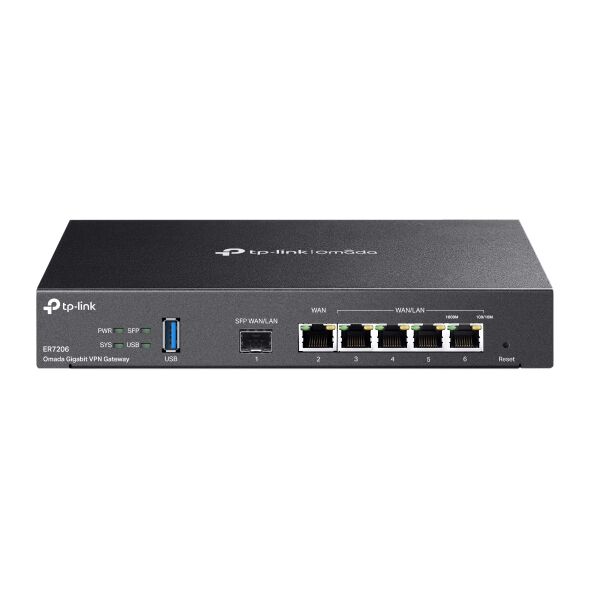

ER7206 V2.20 Omada Gigabit VPN Gateway
4.597,28 ₺
Mobil Geniş Bant için 5'e Kadar WAN Portu ve Bir USB WAN
Bulut Erişimli Yazılım Tanımlı Ağ (SDN)
Birden fazla sitedeki erişim noktalarınızı, anahtarlarınızı ve ağ geçitlerinizi tek bir arayüzden uzaktan yönetin.
Yüksek Güvenlikli ve
Yüksek Performanslı VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN ve
OpenVPN, güvenli İnternet gezintisi, farklı şubeler arası
iletişim veya uzaktan çalışma veya evden öğrenim için
güvenli VPN tünellerini kolayca oluşturur.
*Bu işlevler Omada Donanım Denetleyicisi, Yazılım Denetleyicisi veya Bulut Tabanlı Denetleyicinin kullanımını gerektirir
† LAN MAC Adresi yalnızca Standalone Modunda değiştirilebilir.
§ Bu işlevler yalnızca Bağımsız Modda desteklenir.
△ PPTP VPN ve L2TP VPN için ER7206 (sürüm 2 ve 2.2) en fazla 10 VPN sunucusuna bağlanabilir. OpenVPN için ER7206 (sürüm 2 ve 2.2) en fazla 5 VPN sunucusuna bağlanabilir.
‡ ER7206, VPN istemcisi olarak çalışabilir ve 10 adede kadar VPN sunucusuna bağlanabilir.
| GÜVENLİK | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtreleme | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Denetleme | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding |
| Saldırı Koruması | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
| Arabirim | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Sayısı | Fanless |
| Buton | Reset Button |
| Güç Kaynağı | 12V DC/ 1A Power Adapter |
| PoE Budget | - |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Boyutlar ( W X D X H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Koruma | 4 kV surge protection |
| Muhafaza | Steel |
| Montaj | Desktop/ Wall-Mounting/Rack-Mounting |
| Maks. Güç Tüketimi | • 7.5 W (with USB 3.0 connected) • 4.5 W (without USB 3.0 connected) |
| PERFORMANS | |
|---|---|
| IPS Throughput | TCP: 229 Mbps; UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps; UDP: 927 Mbps |
| WireGuard VPN | 341.3 Mbps |
| Eşzamanlı Oturum | 150,000 |
| New Sessions /Second | 5,300 |
| NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
| NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
| 64 Byte Packet Forwarding Rate | - |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 617.1 Mbps • ESP-SHA256-AES256: 592.8 Mbps • ESP-SHA384-AES256: 592.4 Mbps • ESP-SHA512-AES256: 604.5 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps |
| SSL VPN Throughput | 131.6 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
| TEMEL FOKSİYONLAR | |
|---|---|
| WAN Bağlantı Türü | • Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
| MAC Klon | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| GELİŞMİŞ FONKSİYONLAR | |
|---|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Gelişmiş Yönlendirme | • Static Routing • Policy Routing • RIP§ • OSPF§ |
| Bandwidth Kontrol | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)‡ • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)‡ • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)‡ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | • 20 Tunnels |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password* • Hotspot(Local User /Voucher*/ SMS*/Radius*) • External Radius Sever • External Portal Sever* • LDAP§ |
| YÖNETİM | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Servis | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Bakım | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule* |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İçeriği | • ER7206 • Power Adapter • Quick Installation Guide • Rackmount Kit |
| Sistem Gereksinimleri | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Ortam | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
