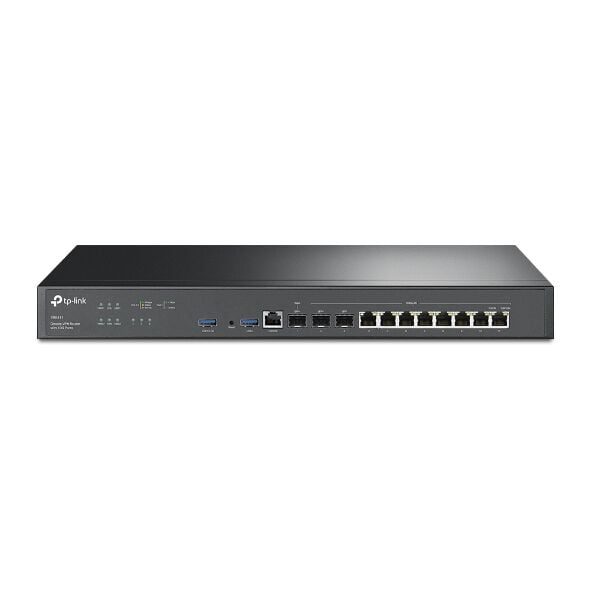

ER8411 V1.2 Omada VPN Router with 10G Ports
23.016,84 ₺
Omada Enterprise Gateway ile 10G Geniş Banttan Maksimum
Fayda Sağlayın
Omada Enterprise Gateway ile Maksimum 10G Geniş Bant. 10G portlu bir kurumsal VPN ağ geçidi olan Omada ER8411 ile yıldırım
hızında ağınızı kurun. Ofisler, okullar ve oteller gibi büyük ölçekli dağıtımlar için ideal olan yüksek hızlı, güvenilir ve güvenli
kurumsal ağlara olan ihtiyacı aşar.
Bulut Erişimli Yazılım Tanımlı Ağ (SDN)
Birden fazla sitedeki erişim noktalarınızı, anahtarlarınızı ve ağ geçitlerinizi tek bir arayüzden uzaktan yönetin.
Yüksek Güvenlikli ve
Yüksek Performanslı VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN ve
OpenVPN, güvenli İnternet gezintisi, farklı şubeler arası
iletişim veya uzaktan çalışma veya evden öğrenim için
güvenli VPN tünellerini kolayca oluşturur.
1. En az bir WAN/LAN portunun LAN portu olarak işlev görmesi gerekir.
2. Bu işlevler Omada Donanım Denetleyicisi, Yazılım Denetleyicisi veya Bulut Tabanlı Denetleyicinin kullanımını gerektirir.
3. LAN MAC Adresi yalnızca Standalone Modunda değiştirilebilir.
4. Bu işlevler yalnızca Bağımsız Modda desteklenir.
5. ER8411, VPN istemcisi olarak çalışabilir ve 32 adede kadar PPTP/L2TP VPN sunucusuna ve 10 adet OpenVPN sunucusuna bağlanabilir.
Dikkat: ER8411 için yalnızca bir adet TL-SM5310-T modülünün kullanılması önerilir.
| GÜVENLİK | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtreleme | • WEB Group Filtering*5 • URL Filtering • Web Security*5 |
| ARP Denetleme | • Sending GARP Packets*5 • ARP Scanning*5 • IP-MAC Binding*5 |
| Saldırı Koruması | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN |
| Arabirim | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Sayısı | 2 |
| Buton | Reset Button |
| Güç Kaynağı | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| PoE Budget | - |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Boyutlar ( W X D X H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Koruma | 4 kV surge protection |
| Muhafaza | Steel |
| Montaj | Rack Mountable |
| Maks. Güç Tüketimi | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
| PERFORMANS | |
|---|---|
| IPS Throughput | TCP: 4924 Mbps; UDP: 4521 Mbps |
| DPI Throughput | TCP: 5524 Mbps; UDP: 3547 Mbps |
| WireGuard VPN | 1411 Mbps |
| Eşzamanlı Oturum | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
| NAT (L2TP) | • Upload: 9064.66 Mbps • Download: 8587.57 Mbps |
| NAT (PPTP) | • Upload: 8712.11 Mbps • Download: 8505.61 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps • Download: 1030 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 3099.4 Mbps • ESP-SHA256-AES256: 2928.4 Mbps • ESP-SHA384-AES256: 2935.7 Mbps • ESP-SHA512-AES256: 2878 Mbps |
| OpenVPN | UDP: 4424.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 10497 Mbps • Encrypted: 3178.5 Mbps |
| PPTP VPN Throughput | • Unencrypted: 10143 Mbps • Encrypted: 952 Mbps |
| SSL VPN Throughput | 4486 Mbps |
| 66 Byte Packet Forwarding Rate | - |
| 1,518 Byte Packet forwarding rate | • Upload: 9970 Mbps • Download: 9970 Mbps |
| TEMEL FOKSİYONLAR | |
|---|---|
| WAN Bağlantı Türü | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Klon | Modify WAN/LAN MAC Address*4 |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| GELİŞMİŞ FONKSİYONLAR | |
|---|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Gelişmiş Yönlendirme | • Static Routing • Policy Routing |
| Bandwidth Kontrol | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing*5, Failover) • Online Detection |
| NAT | • One-to-One NAT*5 • Multi-Net NAT • Port Forwarding • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| SSL VPN | • SSL VPN Server • SSL VPN Client • 500 SSL VPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)*6 • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)*6 • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10)*6 • 110 OpenVPN Tunnels |
| WireGuard VPN | • 300 Tunnels |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password*2 • Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2） • External Radius Sever • External Portal Sever*2 |
| YÖNETİM | |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Servis | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Bakım | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İçeriği | • Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide |
| Sistem Gereksinimleri | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Ortam | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
